| System-name | DSM-1000 system |
|---|---|
| System configuration | Configuration with separator unit (DSM-SP) (1) DSM-SF+DSM-1000+DSM-SP+DSM-ST Configuration without separator unit (DSM-SP) (2) DSM-SF+DSM-1000+EJECTION SUPPORT UNIT+DSM-ST |
| System dimensions (W x D x H) |
Configuration with separator unit (DSM-SP) (1) 4,166 x 1,455 x 1,395 mm Configuration without separator unit (DSM-SP) (2) 3,773 x 1,317 x 1,352 mm |
| Power supply / Maximum power consumption | DSM-SF: Single phase 100V, 680w, 8.0A DSM-1000: Three-phase 200V, 3.5kw, 20A *Peak when pressing: 10kw, 60A |
| Weight | Configuration with separator unit (DSM-SP) (1)3,312 kg (Including accessories) Configuration without separator unit (DSM-SP) (2)3,146 kg (Including accessories) |
| Maximum paper loading volume | Maximum 400mm |
| Size of paper | Width (W) 279～530mm Length (L) 279～750mm |
| Paper quality | High-quality paper 127.9～209.3g/m2 *DSM-SP is available only passing Art coated paper 157~279g/m2 *209.4~279g/m2 when using DSM-SP Court ball 270~600g/m2 *270~600g/m2 when using DSM-SP Chip ball 400 – 650g/m2 *DSM-SP can only be passing, cannot creasing |
| Curl amount | R120 or more / with a height of 10mm or less |
| Maximum processing speed | 3,100 sheets/hour |
| Press pressure | 40 tons |
| Cutting die | Plywood thickness 18±0.5mm Thomson blade height 23.6 mm (23.55~23.8mm) Cutting die size 520x820mm Press area 500x730mm Total length of blade 5,000mm or less |
| Face plate | Size 542x830mm Thickness 1.0mm |
| Separate method | Scrap separation method using by rollers |
| Scrap removal method | Free fall |
| Option | DSM-SP DSM-SF:SUB SUCTION UNIT DSM-1000:REGISTRATION MARK KIT DSM-SP:ADDITIONAL SEPARATION UNIT STEEL COUNTERPLATES (5 SHEETS) COVER SHEET SET ADJUSTMENT PLATE (1.2) ADJUSTMENT PLATE (1.5) METAL SHIM PLATE |
Die Cutter

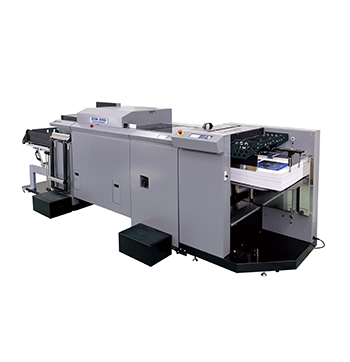

Die Cutter | DSM-1000
This die cutter corresponds up to B2 size paper, and job settings can be easily set by entering numerical values on the PC controller screen. It can set and adjust jobs even without specialized knowledge or experience.
There is an alternative support functions such as automatic separation (cutting waste removal), paper skew correction, and cutting die-board management by using barcodes.
| Process speed | Paper size |
|---|---|
| Maximum 51 sheets / min (3,100 sheets / hour) |
A3 ~ B2 SEF |
