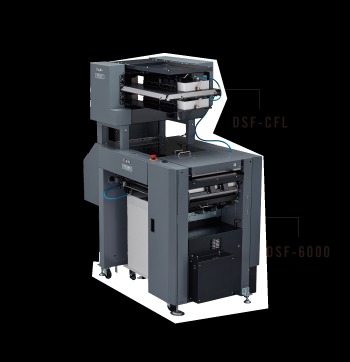

| Model/Type | Sheet Feeder DSF-6000 |
|---|---|
| Machine type | Floor type sheet feeder |
| Feeding system | Belt suction feed system using a fan, Elevator feeder system |
| Maximum paper loading volume | 610mm |
| Buffer capacity | 10 sheets * Depending on the paper quality |
| Paper size | Min.120(W)×210(L)mm Max.364(W)×525(L)mm |
| Paper quality | Fine qulaity, Art/coated |
| Paper weight | Fine quality paper 64 to 300 gsm Art/Coated paper 64 to 300 gsm |
| Paper type | Sheet |
| Processing speed | 600 sheets/min (A4 SEF) |
| Additional functions | Hand-feed (sheet and set), End mark detection (CCD sensor), Anti-static apparatus |
| Power supply | AC100 – 240V, 50/60 Hz |
| Power consumption | 2.7A – 1.2A |
| Dimensions | 1,519（W）× 797（D）× 1,148（H）mm |
| Weight | 302kg |
Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.
| Model/Type | DSF-CFL |
|---|---|
| Machine type | Mounted-type cover feeder (For DSF-6000) |
| Paper feeding method | Belt suction system |
| Maximum paper loading volume | 60mm |
| Paper size | Min.120(W) to 356(L)mm Max.210(W) to 610(L)mm |
| Paper quality | Fine quality paper 64 to 300 gsm Art/Coated paper 64 to 300 gsm |
| Paper type | Sheet |
| Maximum paper feeding speed | A4 portrait 190 sheets/min A3 portrait 145 sheets/min |
| Dimensions | When connected to the DSF-6000 1,519（W）× 797（D）× 1,776（H）mm |
| Weight | When stand-a-lone 75 kg (Including accessories) |
Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.
